EL-Cell GmbH

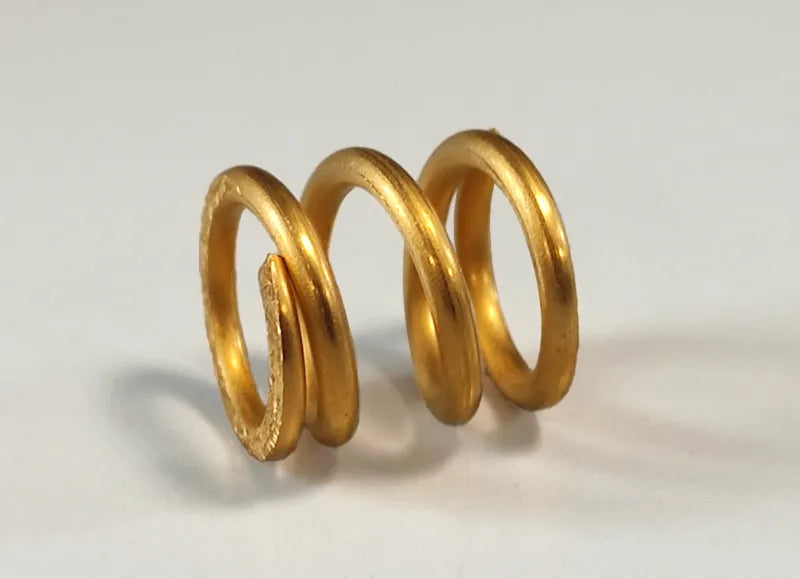

Compression spring 1,6x11, 6x8, L: 11,33 (Au, 5 pcs)
Compression spring 1,6x11, 6x8, L: 11,33 (Au, 5 pcs)
Order number: FED9079/VPrice shown excludes taxes and shipping.
- Stainless steel EN 10270-3-1.4310
- Gold plated 1 µm
- For PAT Series Test Cells
- 1 pack = 5 pcs
The spring force applied to the cell stack is:
- 105 N +-10% if used with aluminum lid seal
- 115 N +-10% if used with PE lid seal.
These values apply to an upper electrode thickness between 0 and 0.8 mm. Within this range, the electrode thickness has no significant influence on the force.
This product is compatible to the following devices:
-
PAT-Cell
-
PAT-Cell-Press
-
PAT-Cell-Force
-
PAT-Cell-HT
-
PAT-Cell-Gas
-
PAT-Cell-Twin-Ref
